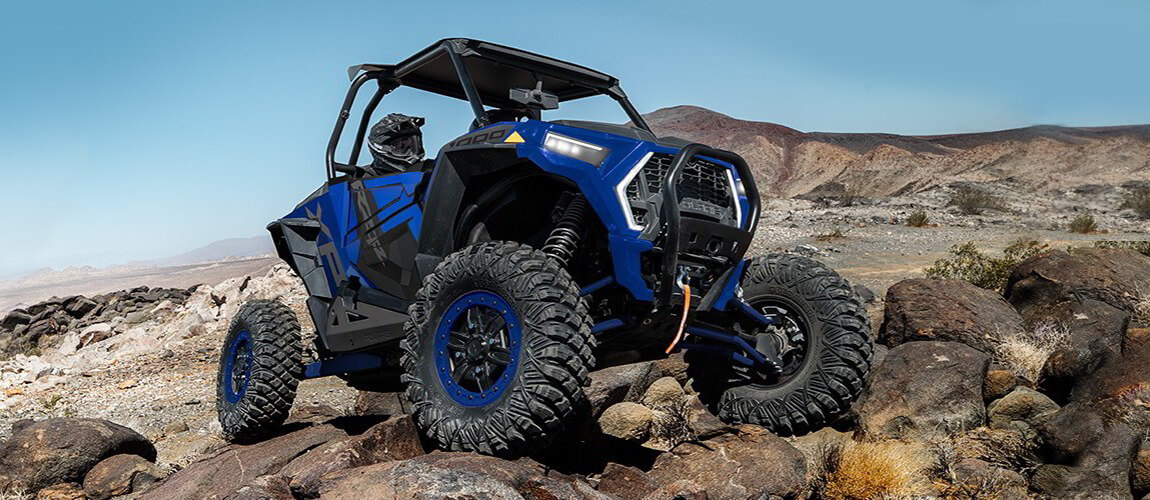

RZR XP 1000 TRAILS AND ROCKS EDITION Image

RZR XP 1000 TRAILS AND ROCKS EDITION

DOMINANT ROCK CRAWLER Image

DOMINANT ROCK CRAWLER

Our rock crawler commands the impassable for superior performance in the most challenging terrain.

  • ENGINEERED FOR ROCK CRAWLING Image

    ENGINEERED FOR ROCK CRAWLING

    The instant delivery of 110 naturally aspirated horsepower is fed through 55% lower gearing & new low-speed throttle mapping for perfect modulation of our True On-Demand All Wheel Drive system.

  • CONTROLLED CHAOS Image

    CONTROLLED CHAOS

    Rocks, stumps, silt sand, mud, all being encountered at high-speed. Tame it with an incredible 20.5" of suspension travel, 14" ground clearance, massive 30" crawler tires with Beadlocks and stage-tuned Walker Evans Needle Shocks.

  • RECOVERY READY Image

    RECOVERY READY

    Recovery comes standard for challenging crawls with a 4,500 lb Polaris Winch. Avoid using it with high-visibility fender flares to see your line & rock sliders to skid over when you can't.

  • INSTINCTIVE CONTROL Image

    INSTINCTIVE CONTROL

    Industry-leading agility is no accident. It is the combination of chassis, suspension, steering geometry, AWD and power to create an off-road vehicle with a level of high-performance handling and agility so responsive, it practically reads your mind.

  • TOUGHER THAN THE TRAILS Image

    TOUGHER THAN THE TRAILS

    This vehicle is more than just a low-speed crawler. When boulders are replaced with twisting terrain, toughness and performance are ready to be released. This model features a Click-6 Harness that secures you in while power is fed through the strengthened half-shafts and as you propel over rocks and stumps with all-around high clearance suspension components.

  • RULE THE RUGGED



    • Polaris Blue

      XP 1000 Trails and Rocks

      KEY SPECS :

      • 20.5”/20.5" Usable Travel
      • Walker Evans Needle Shocks
      • 30” Pro Armor Crawler XG Tires & Beadlocks
      • 14.5” Ground Clearance
      TRAILS & ROCK FEATURES :
      • 55% Lower Low Gear
      • Low Speed Throttle Mapping
      • Xtreme Performance AWD
      • Hi-Clearance Arms & Rods
      • 4,500 lb Winch
      • Lower Doors

    Specifications

    ENGINE & DRIVETRAIN

    • Engine type ProStar 1000 H.O. 4-Stroke DOHC Twin Cylinder
    • Cylinders-Displacement (cc) 999cc / 110 HP
    • Fuel System Electronic Fuel Injection
    • Transmission/Final Drive Automatic PVT P/R/N/L/H with Reduced L Gear
    • Drive System Type Xtreme Performance True On-Demand Close Ratio AWD/2WD with Enhanced Low Gear Throttle Driveability
    • Cooling Liquid

    SUSPENSION / BRAKES / WHEELS

    • Front Suspension High Clearance Lower Control Arms, Dual A-Arm and 52.07 cm Usable Travel, 40.6 cm of Wheel Travel
    • Rear Suspension High Clearance Radius Rods, Trailing Arm with Stabilizer Bar and 52.07 cm Usable Travel, 45.7 cm of Wheel Travel
    • Front / Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
    • Parking Brake Park In-Transmission
    • Front Tyres 30 X 10 -14; Pro Armor Crawler XG
    • Rear Tyres 30 X 10 -14; Pro Armor Crawler XG
    • Wheels Cast Aluminum

    DIMENSIONS

    • Bed Box Dimensions (L x W x H) 72.0 x 57.0 x 17.8 cm
    • Front/Rear Rack or Box Capacity N/A kg / 136 kg
    • Fuel Capacity 35.9 L
    • Ground Clearance 36.8 cm
    • Overall Vehicle Size (L x W x H) 304.8 x 162.6 x 188.6 cm
    • Wheelbase 228.6 cm
    • Estimated Dry Weight 715 kg

    FEATURES

    • Cargo System Lock & Ride
    • Hitch Towing Rating
    • Hitch/Type Not Equipped
    • Instrumentation Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet, High Visibility Front Fender Flares, 4,500 lb Polaris Winch with Dash Switch, Front Bumper & Rock Sliders, Rear View Mirror
    • Variants Off-Road
