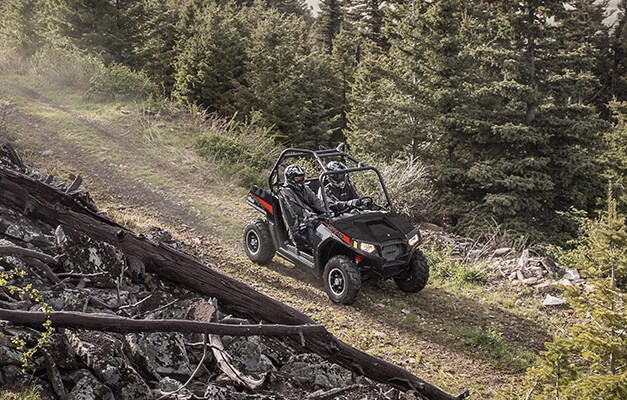

RZR Trail 570 Image

RZR Trail 570

A TRUE TRAIL BLAZER Image

A TRUE TRAIL BLAZER

RZR Trail 570 unlocks the ideal balance of power and agility to conquer width-restricted 50" trails and beyond.

PERFORMANCE Image

PERFORMANCE

The ProStar 570 engine has been engineered to deliver optimum horsepower, torque and acceleration for 50" trails. The intelligent ProStar design unlocks compact power, instant corner-to-corner acceleration, and maximum fuel-efficiency for all-day range.

SUSPENSION Image

SUSPENSION

Own the trails with 22.86cm of true suspension travel. Traverse stumps and rocks with 26.7cm of ground clearance and skillfully maneuver around obstacles with the instant response of our 50" trail-width chassis.

AGILITY Image

AGILITY

Our 50" chassis combines lightweight design, refined suspension geometry, and the industry’s best True On-Demand All-Wheel Drive (AWD) system for instant power delivery to the wheels that need it most. The result is firm control and unrivaled agility.

TRIM & COLOUR OPTIONS



  • White Lightning

    Trail 570

    • 50" Width
    • 45 HP ProStar 570
    • 22.86cm Suspension Travel
    • ZF Sachs Shocks
    • 25” Tires
    • 26.7cm Ground Clearance

Specifications

ENGINE & DRIVETRAIN

  • Engine type ProStar 570 4-Stroke DOHC Single Cylinder
  • Cylinders-Displacement (cc) 567 cc / 45 HP
  • Fuel System Electronic Fuel Injection
  • Transmission/Final Drive Automatic PVT P/R/N/L/H; Shaft
  • Drive System Type True On-Demand AWD/2WD
  • Cooling Liquid

SUSPENSION / BRAKES / WHEELS

  • Front shocksZF Twin Tube
  • Front Suspension Dual A-Arm with Stabilizer Bar 22.9 cm Travel
  • Rear shocks ZF Twin Tube
  • Rear Suspension Dual A-Arm with Stabilizer Bar 24 cm Travel
  • Front / Rear Brakes 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
  • Parking Brake Park in Transmission
  • Front Tyres 25 x 8-12
  • Rear Tyres 25 x 10-12
  • Wheels Stamped Steel

DIMENSIONS

  • Bed Box Dimensions (L x W x H) 51 x 102 x 23 cm
  • Front/Rear Rack or Box Capacity 136 kg
  • Fuel Capacity 27.4 L
  • Ground Clearance 26.7 cm
  • Overall Vehicle Size (L x W x H) 273 x 127 x 175.2 cm
  • Payload capacity 336 kg
  • Wheelbase 196 cm
  • Estimated Dry Weight 452 kg

FEATURES

  • Cargo System Lock & Ride
  • Doors Side Nets
  • Electronic Power SteeringNot Equipped
  • Hitch Towing Rating 680.4 kg
  • Hitch/Type Standard 3.2 cm Receiver
  • Instrumentation Single Analog Dial with 2” LCD Rider Information Center: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seatbelt Reminder Light, Gear Indicator, DC Outlet
  • Lighting Halogen 50W
  • Seat Type Base Seats
  • Variants Off-road
