RANGER 570 HD EPS ADC Image

RANGER 570 HD EPS ADC

BIG PERFORMANCE. SMALL FOOTPRINT. Image

BIG PERFORMANCE. SMALL FOOTPRINT.

The RANGER 570 puts best-in-class 2-person utility side-by-side performance in your hands. This workhorse is equipped with features you need to get the job done, and comfort you desire for successful days on the trails or around your property.

BEST-IN-CLASS POWER Image

BEST-IN-CLASS POWER

The purpose-built ProStar 570 engine delivers best in class power and performance with 44 HP and smooth low-end torque. True On-Demand All Wheel Drive gives you the traction you need, right when you need it.

COMPACT CAPABILITY Image

COMPACT CAPABILITY

The RANGER 570 has the hauling power you need for jobs big and small. The standard 5cm hitch receiver can tow up to 680.4kg with a 226.8kg gas-assist dump box, so you can unload your cargo with ease.

ALL-DAY COMFORT Image

ALL-DAY COMFORT

Confidently soak up rough terrain with 25.4cm of independent rear suspension travel and rise over obstacles with 25.4cm of ground clearance, delivering the smoothest ride in mid-size utility. Enjoy the added convenience and comfort with an adjustable tilt steering wheel.

UTILITY OR RECREATION

After a long week of work, take a break, pack-up your RANGER 570 and take it down to the river for a relaxing day of fishing with friends and family. With the 680.4kg Payload Capacity and 226.8kg Box Capacity you have all the room you need to haul your gear for a full day trip.

ADJUSTABLE TILT STEERING Image

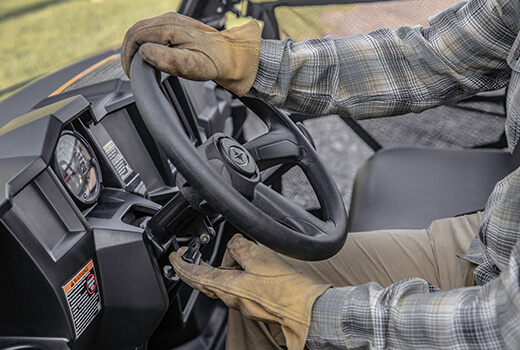

ADJUSTABLE TILT STEERING

Utilize the tilt steering to adjust the position of the steering wheel to easily enter and exit the vehicle.

VERSATRAC TURF MODE Image

VERSATRAC TURF MODE

For work around the house, unlock the rear differential for easier and tighter turns that won't tear up your lawn.

STANDARD 5CM RECEIVER Image

STANDARD 5CM RECEIVER

Connect your trailer to your RANGER with the standard 5cm receiver and maximize the impressive 680.4kg towing capacity.

PROPERTY MAINTENANCE

There's always another job to do around the property. The RANGER 570 comes standard with a versatile cargo box and makes it easy for you to load and unload supplies for the job.

HAUL MORE Image

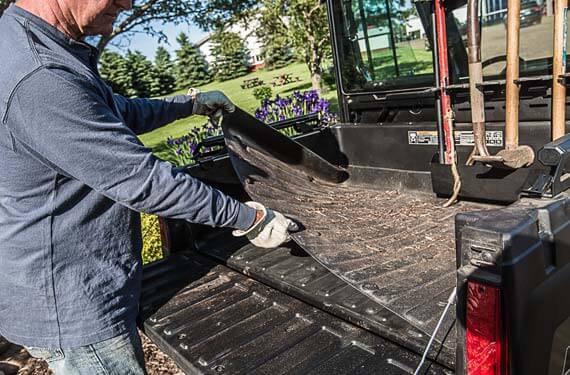

HAUL MORE

Take advantage of the versatile bed box and haul all up to 226.8kg of your work supplies needed to get any job done.

GAS ASSIST DUMP BOX Image

GAS ASSIST DUMP BOX

For the larger loads, utilize the gas assist dump box to unload the bed of your RANGER.

PURPOSE-BUILT ACCESSORIES Image

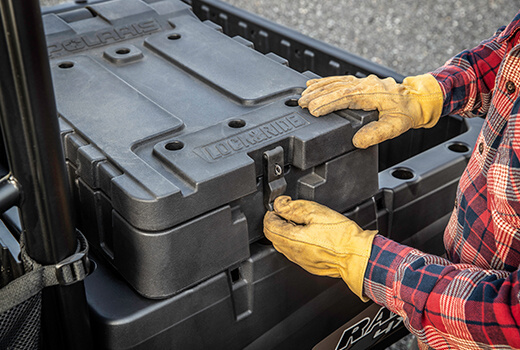

PURPOSE-BUILT ACCESSORIES

Upgrade your RANGER with the easy-to-install Polaris Engineered Accessories. With the Lock & Ride functionality, you can easily create a more versatile box, haul more, and protect your SxS from the elements.

TRIM & COLOUR OPTIONS



  • Bronze Mist

    570 HD EPS ADC

    Built for power and value in a compact package, to work and play harder with 44 HP, 680.4kg towing and 25.4cm clearance.

    • Electric Power Steering (EPS)
    • Active Decent Control (ADC)
    • Automotive Paint
    • ProStar 570 Engine
    • 25" 489 Tyres
    • Aluminium Black Xcelerator Wheels
    • Heavy Duty features including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushings, sealed ball joints, driveshaft spline seals and hand actuated parking break

Specifications

ENGINE & DRIVETRAIN

  • Engine type 4-Stroke Single Cylinder
  • Cylinders-Displacement (cc) 567 cc / 44 HP
  • Fuel System/BatteryElectronic Fuel Injection
  • Transmission/Final Drive Automatic PVT H/L/N/R/P; Shaft
  • Drive System Type On-Demand True AWD/2WD/ VersaTrac Turf Mode. Active Decent Control (ADC) and Heavy Duty features including upgraded rear driveshaft, grease nipples, HD sway bar, sealed suspensions bushings, sealed ball joints and driveshaft spline seals
  • Cooling Liquid

SUSPENSION / BRAKES / WHEELS

  • Front Suspension MacPherson Strut 22.9 cm Travel
  • Rear Suspension Dual A-Arm, IRS 25.4 cm Travel
  • Front / Rear Brakes 4-Wheel Hydraulic Disc
  • Parking Brake Hand Actuated
  • Front Tyres 25 x 8-12; 489
  • Rear Tyres 25 x 10-12; 489
  • Wheels Aluminium Black Xcelerator

DIMENSIONS

  • Bed Box Dimensions (L x W x H) 81 x 107 x 29 cm
  • Front/Rear Rack or Box Capacity226.8 kg
  • Fuel Capacity 34.1 L
  • Ground Clearance 25.4 cm
  • Overall Vehicle Size (L x W x H) 279 x 147 x 185 cm
  • Payload capacity 453.6 kg
  • Wheelbase 185.4 cm
  • Estimated Dry Weight 499kg

FEATURES

  • Cargo System Lock & Ride
  • Electronic Power Steering Standard
  • Hitch Towing Rating 680.4 kg
  • Hitch/Type Standard / 5 cm Receiver
  • Instrumentation Single Analog Dial with 2" LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
  • Lighting 50W Headlight, LED Tail
  • Variants Off-road
